eshel observations, DeniSe instrument

0,355m f5 schmidt cassegrain reflector, spectrograph eshel R=11000, disp 0,1A/pix, wavelenght domain 4450A-8150A. Zip archive of 23 non normalized échelle orders in Bess Fit format (standart preprocessing, calibration on a spectra of thorium argon lamp, instrumental response corrected on Vega or Altair or alpha Leo. No heliocentric and no telluric corrections. date MJD 2400000+

1  20120710_222814_AZcas_6x1200s_TGarrel   MJD 56119.4363

2  20120716_214021_AZcas_6x1200s_TGarrel   MJD 56125.4030

3  20120806_200256_AZcas_6x1200s_TGarrel   MJD 56146.3354

4  20120831_220201_AZCas_6x1200s_TGarrel   MJD 56171.4101

5  20120907_194554_AZcas_7x1200s_TGarrel   MJD 56178.3235

6  20120914_212341_AZcas_8x1200s_TGarrel   MJD 56185.3914

7  20120922_192005_AZcas_7x1200s_TGarrel   MJD 56193.3056

8  20121002_184005_AZcas_7x1200s_TGarrel   MJD 56203.2778

9  20121009_192223_AZCas_9x1200s_TGarrel   MJD 56210.3072

10 20121013_180511_AZCas_8x1200s_TGarrel   MJD 56214.2536

11 20121024_174707_AZCas_3x1200s_TGarrel   MJD 56225.2411

12 20121029_182753_AZCas_9x1200s_TGarrel   MJD 56230.2694

13 20121105_183344_AZCas_9x1200s_TGarrel   MJD 56237.2734

14 20121111_173832_AZCas_9x1200s_TGarrel   MJD 56243.2351

15 20121115_194240_AZCas_8x1200s_TGarrel   MJD 56247.3213

16 20121119_172924_AZCas_9x1200s_TGarrel   MJD 56251.2288

17 20121122_184346_AZCas_9x1200s_TGarrel   MJD 56254.2804

18 20121130_182812_AZCas_9x1200s_TGarrel   MJD 56262.2696

19 20121206_193149_AZcas_8x1200s_TGarrel   MJD 56268.3138

20 20121211_213648_AZcas_7x1200s_TGarrel   MJD 56273.4006

21 20121217_190742_AZcas_5x1200s_TGarrel   MJD 56279.2970

22 20121223_181131_AZcas_7x1200s_TGarrel   MJD 56285.2580

23 20130102_190814_AZcas_8x1200s_TGarrel   MJD 56295.2974

24 20130110_195257_AZcas_6x1200s_TGarrel   MJD 56303.3284

25 20130117_201356_azcas_7x1200s_TGarrel    MJD 56310.3430

26 20130125_180945_azcas_14x1200s_TGarrel  MJD 56318.2568

27 20130203_203042_azcas_5x1200s_TGarrel    MJD 56327.3547

28 20130213_185304_AZcas_7x1200s_TGarrel    MJD 56337.2869

29 20130219_185522_AZcas_9x1200s_TGarrel    MJD 56343.2885

30 20130309_232632_AZcas_4x1200s_TGarrel

31 20130412_195650_AZcas_8x1200s_TGarrel

32 20130422_192438_AZcas_4x1200s_TGarrel

33 20130501_193518_AZcas_5x1200s_TGarrel

34 20130512_015133_AZcas_5x1200s_TGarrel

35 20130526_013916_AZcas_5x1200s_TGarrel

36 20130612_002506_AZcas_7x1200s_TGarrel

37 20130624_232621_AZcas_10x1200s_TGarrel

38 20130721_011543_AZcas_6x1200s_TGarrel

39 20131127_201047_AZcas_3x1200s_TGarrel



Observatory coordinates Lat 43 37 30 Long E03 48 12 elevation 70m



LhiresIII observations

20120813_060_AZcas_Lhires_halpha MJD 56152.5596

Centered on h alpha (6502A-6608A) taken on August 13.06, with a LhiresIII spectrograph, 2400gr/mm, R=15000, disp 0,16A/pix, attached to a 0,212m f10 cassegrain reflector. Calibration has been done on a spectra of an internal neon lamp. Standart pre processing applied, instrumental response corrected with a spectra of Vega. not normalized.
Observers are Paolo Berardi and me during 2012 OHP spectroscopy workshop. No heliocentric and no telluric corrections. date MJD 2400000+
 OHP coordinates Lat 43 55 54 Long E05 42 44 elevation 650m

h alpha evolution

Heliocentric time evolution:

20131127-201047-AZcas-3x1200s-TGarrelmultiplot

AZcas_anim

 Heliocentric radial velocity/wavelenght shift variations,

AZcas____dynagraph

Ew evolution between 6558 6565: Recent increase of the red wing emisison cause a decraese of Ew. Fluctuation before recent period are due to blue wing activitie with a probable period of 28d (to be confirmed)

ew_courbe

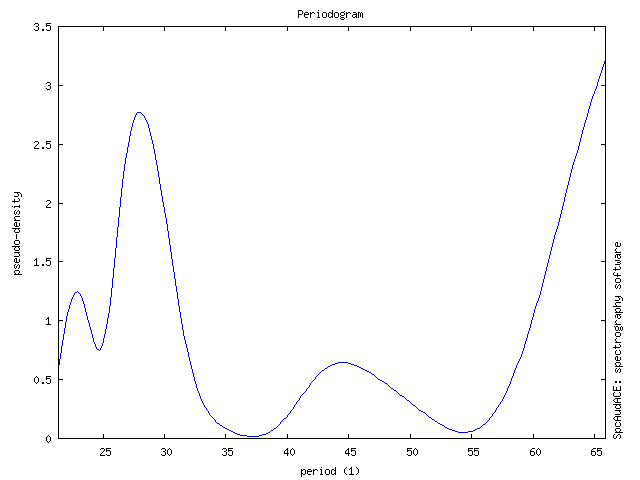

periodogram


Na D evolution

multiplot

AZcas_anim

ew_courbe




h beta evolution

multiplot


See also ARAS page AZ Cas eclipse 2012-2014 Table of spectra taken by campaign members dozens of spectra of different resolutions and optical domains available from all over the world

Current campaign spectroscopy results
